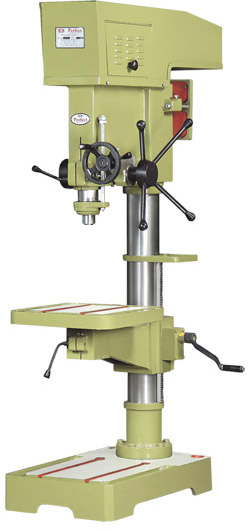

| Model : PSLX - 40 |
|
|
| Model Code System |
|
|
P = Plillar Drill
20 / 25 / 40 = Drill Capacity
S = Square Head Model
R = Round Head Model
L = Long Spindle Travel
X = Xtra Heavy Model
T = Tapping Machine |
|
|
| |
|
|
| Specification |
PSLX - 40 |
|
| Tilting Working table |
Fixed |
|
| Drilling Capacity |
40 mm |
|
| Spindle nose to table distance |
595 mm |
|
| Distance form spindle nose to base distance |
1050 mm |
|
| Distance form Spindle conted to pillar surface (in mm) |
320 (Max) |
|
| Table Travel |
480 mm |
|
| Taper in spindle |
MT - 4 |
|
| Number of Speed |
8 |
|
| Range of Speed (RPM) |
70 to 2000 |
|
| Table Size (in mm) |
410 x 410 |
|
| Base size (m/c area in mm) |
440 x 715 |
|
| Overall base size (in mm) |
445 x 720 |
|
| Spindle Travel |
250 mm |
|
| Pillar Length |
1450 mm |
|
| Overall height with pully guard |
1860 mm |
|
| V-Belt Section |
B - 50" |
|
| Weight (approx.) |
325 kgs |
|
| Moter 1440 RPM 3 Phase 440 Volts |
1.5 H.P. |
|
| Shipping wooden case inner size L x W x H |
860 x 460 |
|
