Products >> PR-40DT

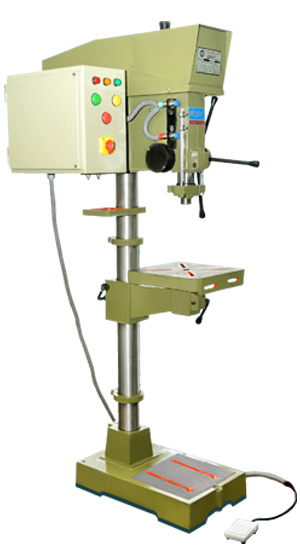

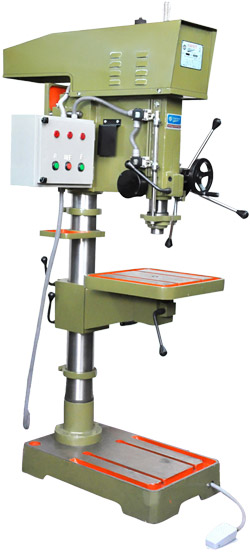

Model : PR-40DT
40 mm Drill Come Tapping Machine
Model Code System
P = Plillar Drill
20 / 25 / 40 = Drill Capacity
S = Square Head Model
R = Round Head Model
L = Long Spindle Travel
X = Xtra Heavy Model
T = Tapping Machine




Specification 40 mm Drill & Tapping
Tilting Working table Fixed
Drilling Capacity 40 mm
Spindle nose to table distance 595 mm
Distance form spindle nose to base distance 1050 mm
Distance form Spindle conted to pillar surface (in mm) 320 (Max)
Table Travel 480 mm
Taper in spindle MT - 4
Number of Speed 8
Range of Speed (RPM) 70 to 2000
Table Size (in mm) 410 x 410
Base size (m/c area in mm) 440 x 715
Overall base size (in mm) 445 x 720
Spindle Travel 250 mm
Pillar Length 1450 mm
Overall height with pully guard 1860 mm
V-Belt Section B - 50"
Weight (approx.) 325 kgs
Moter 1440 RPM 3 Phase 440 Volts 1.5 H.P.
Shipping wooden case inner size L x W x H 860 x 460
