Products >> PT - 12

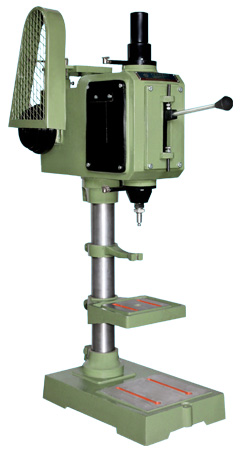

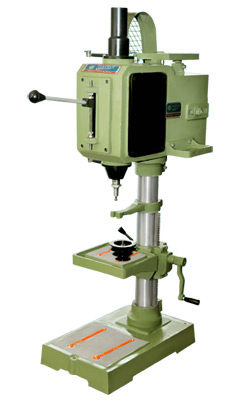

Model : PT - 12
Model Code System
P = Plillar Drill
20 / 25 / 40 = Drill Capacity
S = Square Head Model
R = Round Head Model
L = Long Spindle Travel
X = Xtra Heavy Model
T = Tapping Machine



Specification PT - 12
Tapping Machine Capacity 12 mm
Spindle Travel 32 mm
Table Travel 75 mm
Distance Spindle to column 140 mm
Distance between Chuck to Base 450 mm
Distance between Chuck to Work Table 380 mm
Size of Base Plate - LXB 480 x 350 mm
Size of Work Table - LXB 190 x 120 mm
Diameter of Column 74 mm
V-Belt ( Inside) A - 69
V-Belt for motor (Outside) A - 25
No. of Spindle Speeds 3
Forwards speed Range 350 / 620 / 1100
Reverse speed Range 420 / 745 / 1315
Motor single phase of Three phase 0.75 / 1H.P.
Over all height 1245 mm
Over all width 370 mm
Over all front to back 600 mm
Weight approx 120 kg.
