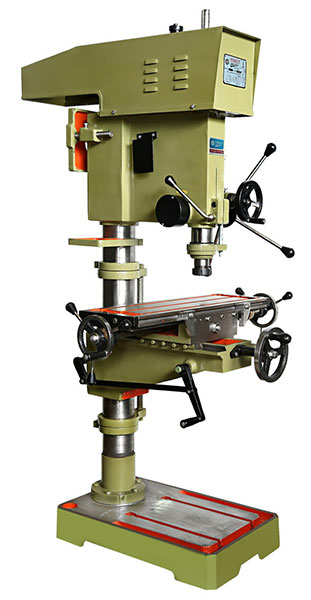

| Model : PSLX-40 |
|
|
| Model Code System |
|
|
P = Plillar Drill
20 / 25 / 40 = Drill Capacity
S = Square Head Model
R = Round Head Model
L = Long Spindle Travel
X = Xtra Heavy Model
T = Tapping Machine |
|
|
| |
|
|
| Specification |
PR-12 |
|
| Tilting Working table |
fixed |
|
| Drilling Capacity |
12 mm |
|
| Spindle nose to table distance |
150 mm |
|
| Distance form spindle nose to base distance |
584 mm |
|
| Distance form Spindle conted to pillar surface (in mm) |
200 (Max) |
|
| Table Travel |
210 mm |
|
| Taper in spindle |
12 mm checkdgree |
|
| Number of Speed |
8 |
|
| Range of Speed (RPM) |
|
|
| Table Size (in mm) |
205 x 205 |
|
| Base size (m/c area in mm) |
330 x 228 |
|
| Overall base size (in mm) |
330 x 228/td>
| |
| Spindle Travel |
80 mm |
|
| Pillar Length |
762 mm |
|
| Overall height with pully guard |
1040 mm |
|
| V-Belt Section |
A - 35" |
|
| Weight (approx.) |
45 kgs |
|
| Moter 1440 RPM 3 Phase 440 Volts |
0.5 H.P. |
|
| Shipping wooden case inner size L x W x H |
330 x 228 * 1041 |
|
