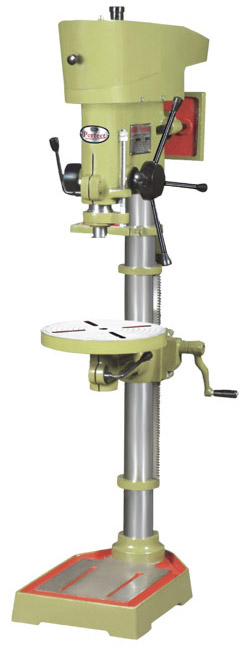

| Model : PR - 20 |
|
|
| Model Code System |
|
|
P = Plillar Drill
20 / 25 / 40 = Drill Capacity
S = Square Head Model
R = Round Head Model
L = Long Spindle Travel
X = Xtra Heavy Model
T = Tapping Machine |
|
|
| |
|
|
| Specification |
PR - 20 |
|
| Tilting Working table |
Up to 360 |
|
| Drilling Capacity |
20 mm |
|
| Spindle nose to table distance |
660 mm |
|
| Distance form spindle nose to base distance |
900 mm |
|
| Distance form Spindle conted to pillar surface (in mm) |
200 (Max) |
|
| Table Travel |
500 mm |
|
| Taper in spindle |
MT - 2 |
|
| Number of Speed |
8 |
|
| Range of Speed (RPM) |
87 to 3224 |
|
| Table Size (in mm) |
288 x 288 |
|
| Base size (m/c area in mm) |
480 x 330 |
|
| Overall base size (in mm) |
500 x 330 |
|
| Spindle Travel |
120 mm |
|
| Pillar Length |
1170 mm |
|
| Overall height with pully guard |
1400 mm |
|
| V-Belt Section |
A - 41" |
|
| Weight (approx.) |
110 kgs |
|
| Moter 1440 RPM 3 Phase 440 Volts |
0.5 H.P. |
|
| Shipping wooden case inner size L x W x H |
660 x 380 |
|
